Curve Leicester

A 750-seat theatre and a 350-seat “black box” share a central flexible stage, which may also open towards the foyer. Awards of Curve Leicester: 2009 RIBA for the East Midlands region and 2010 International Architecture (Chicago Athenaeum and European Centre for Architecture, Art Design & Urban Studies).

Information Sheet

New Build Curve   www.curveonline.co.uk

Location Leicester, United Kingdom.

Project Cost £62 million (approximately 73 million € according to the opening year's conversion rate).

Time Frame Design: 2002-2005. Construction: 2005-2008. Opening: November 2008.

Owner Leicester City Council.

Architect(s) Rafael Viñoly, Rafael Viñoly Architects, New York/London   www.vinoly.com

Theatre Planner(s) dUCKS Scéno, France   www.ducks.fr

Seat Count Performing arts center with two theatres, one 750-seat Proscenium theatre and one 350-seat “black box”. The central stage in between the 2 theatres can be used for either one of the theatre rooms, or both — then becoming a single 1 100-seat performing hall —, or extended to the lobby, which then becomes yet another performing space. Acoustical isolation around this ultra flexible stage is partly provided through novel curtain and separation concepts. Total area 13 000 m².

Uses Theatre, musicals, experimental theatre, music performances.

Services Comprehensive acoustics consulting, from basic design through construction supervision and opening services.

Team Eckhard Kahle, Project Manager, Thomas Wulfrank, Site Supervision, Nathalie Faillet, Kahle Acoustics.

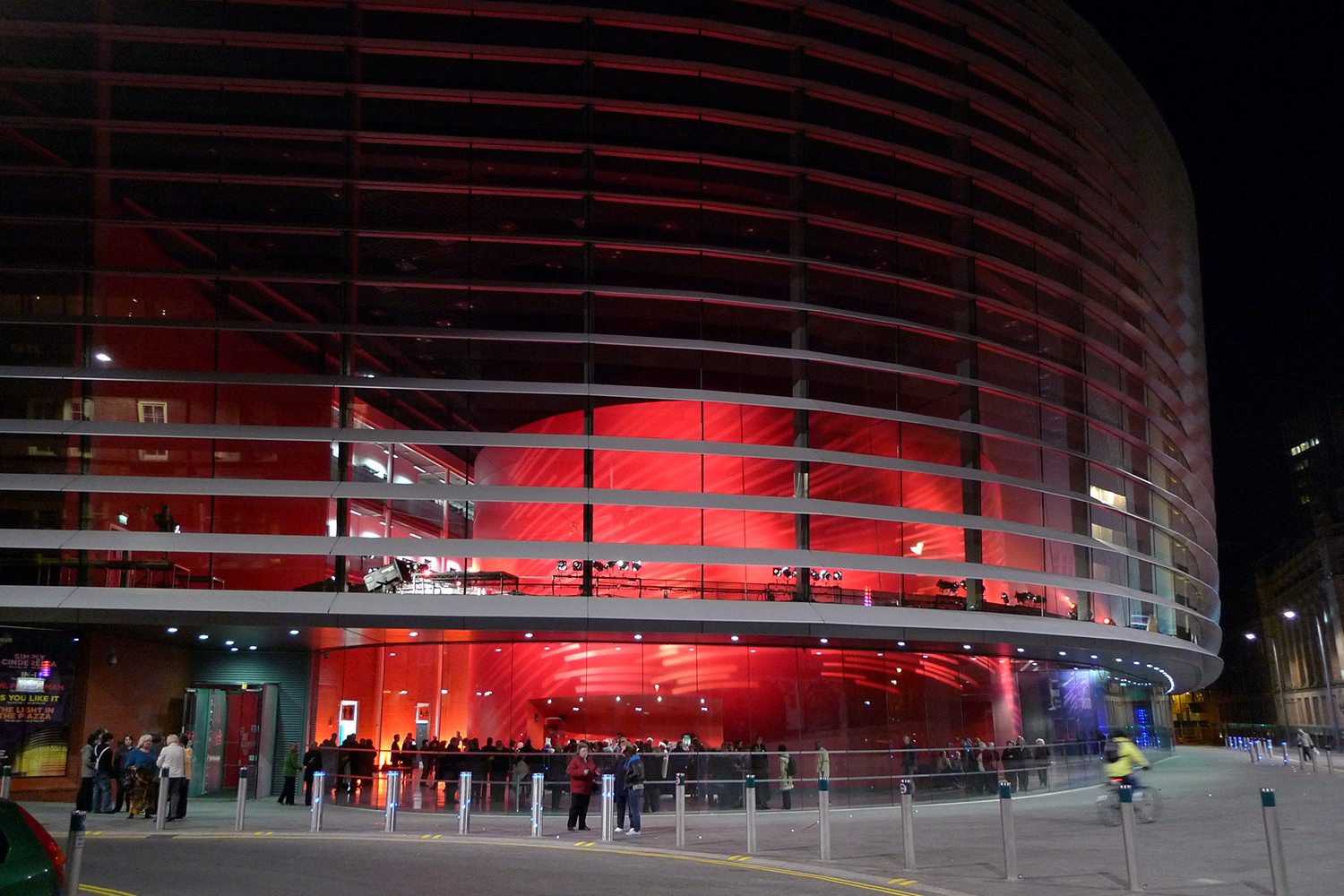

01/13CurveThe Curve as seen from the street, with a view onto the 350-seat theatre. Photo © Kahle Acoustics
02/13CurveThe Curve as seen from the street, with a view onto the 350-seat theatre. Photo © Kahle Acoustics

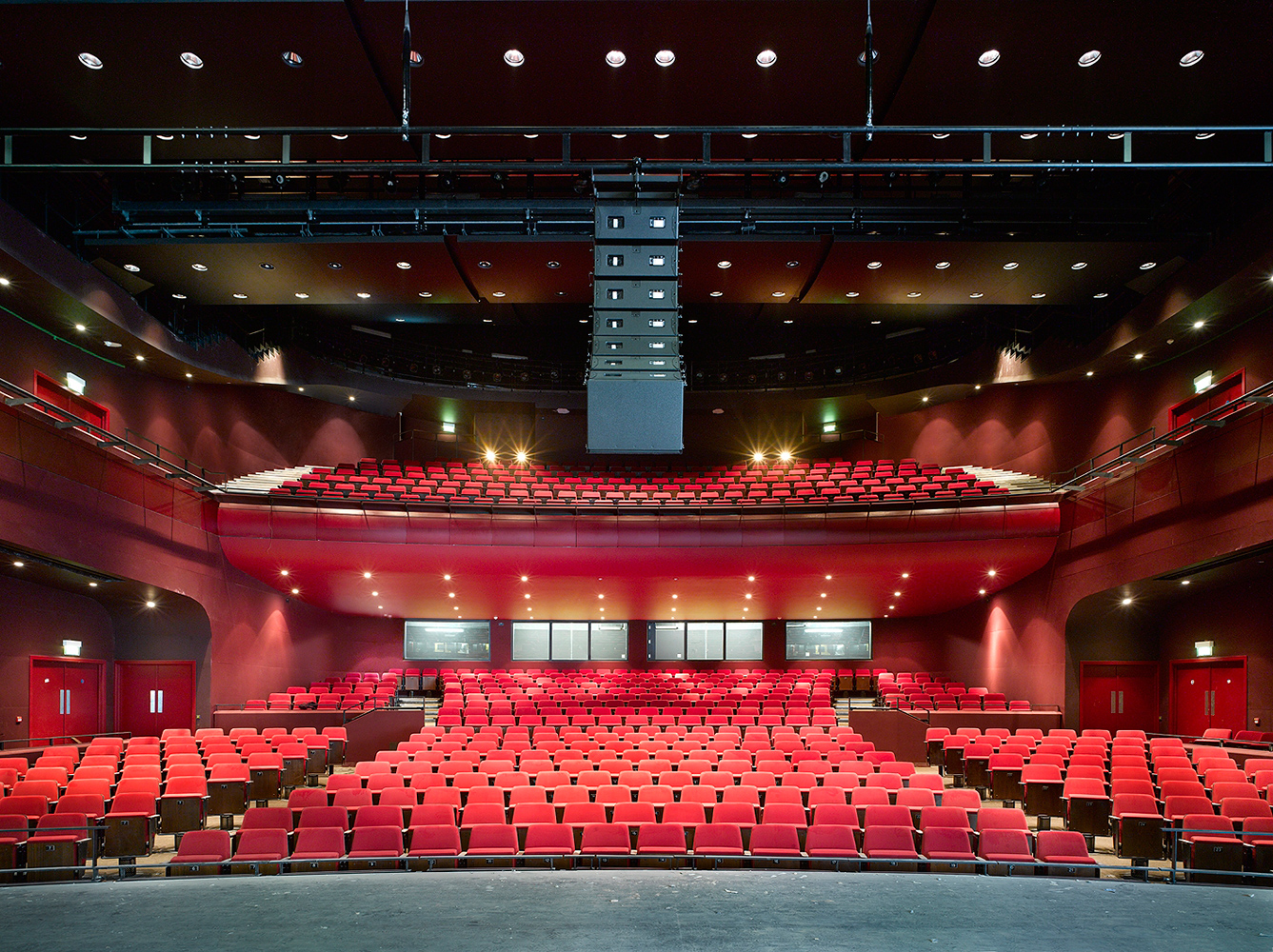

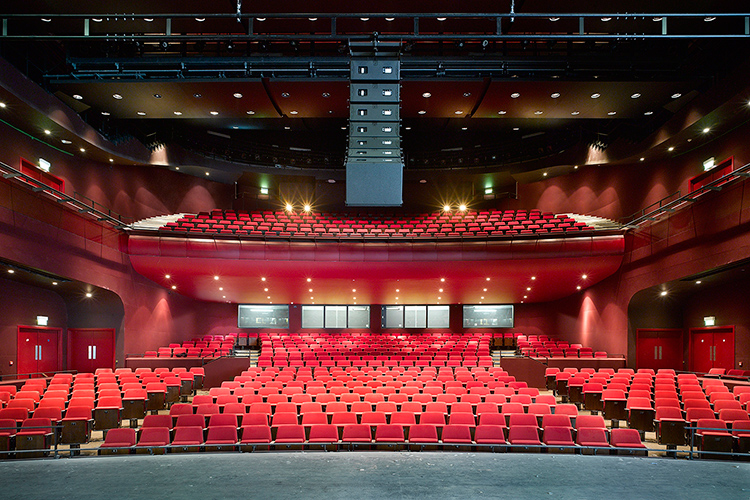

03/13CurveThe 750-seat Proscenium theatre. Photo © Will Pryce

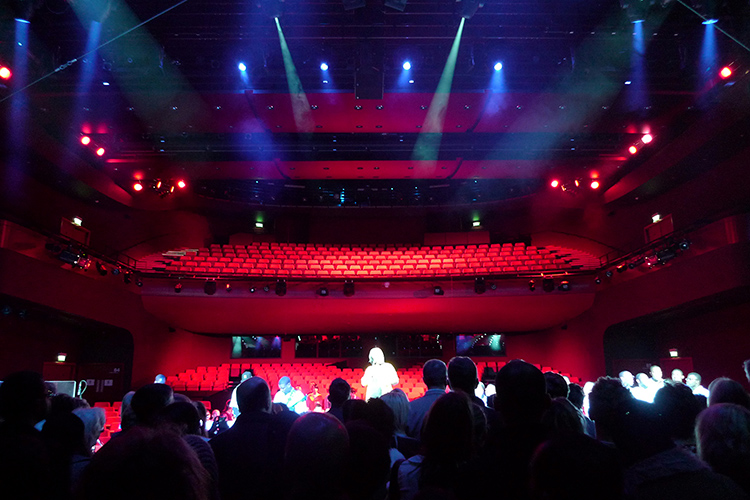

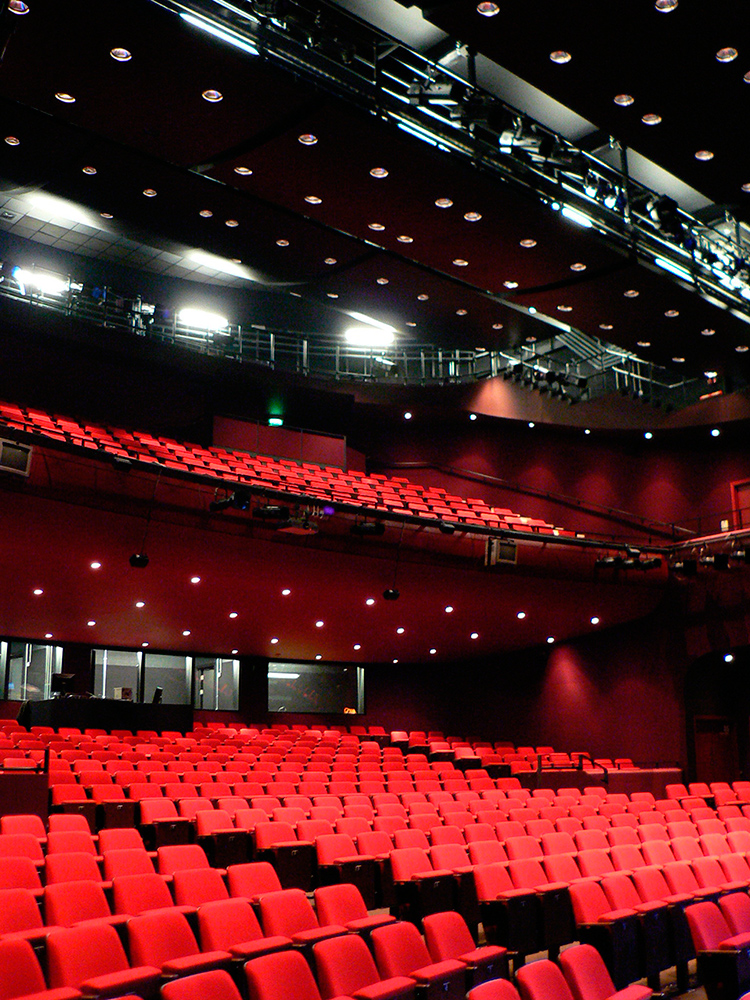

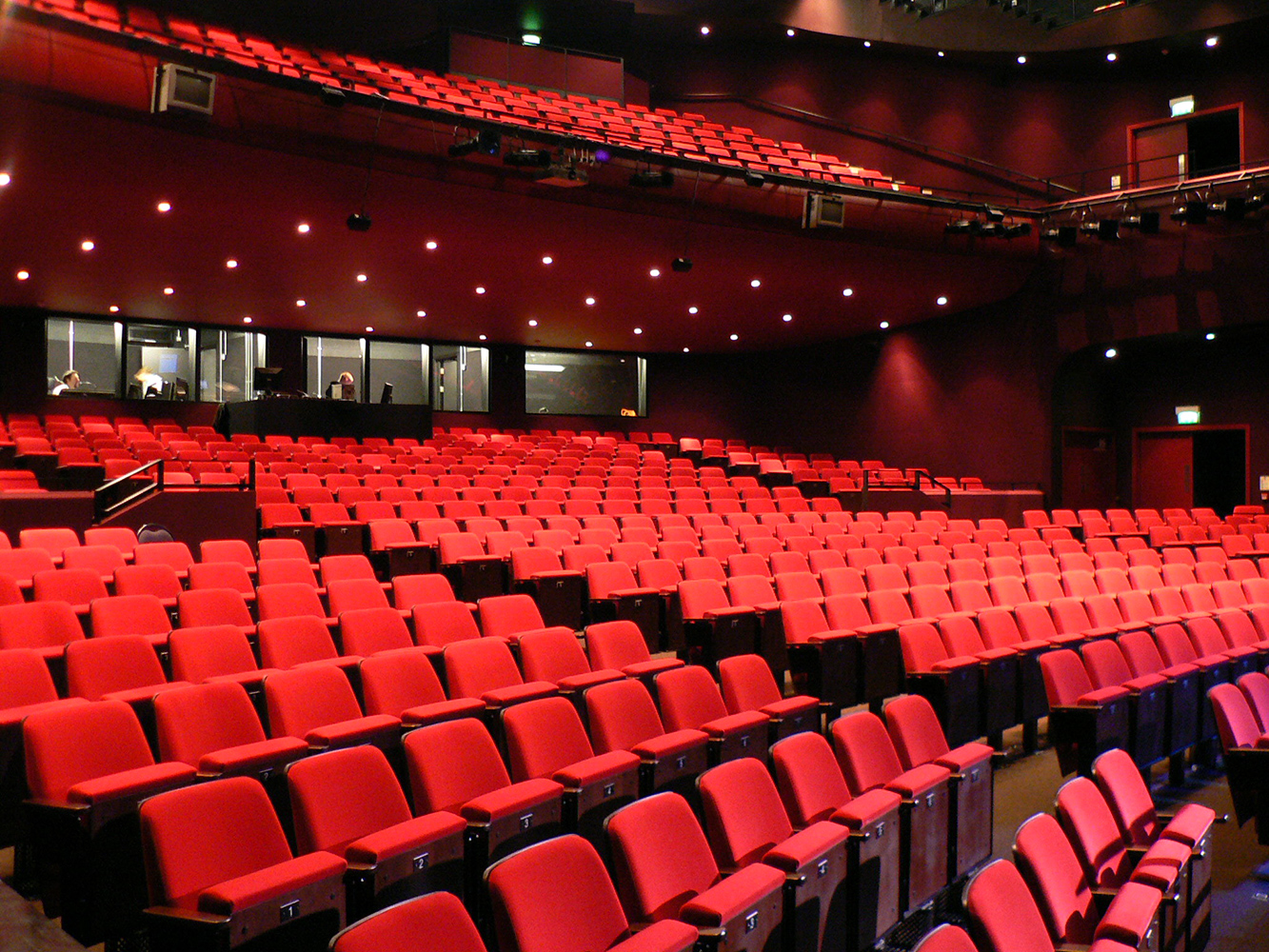

04/13CurveThe 750-seat Proscenium theatre. Photo © Kahle Acoustics

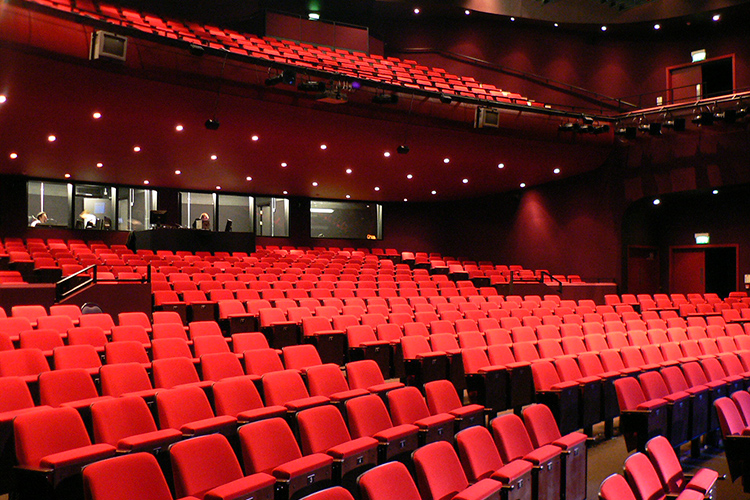

05/13CurveThe 750-seat Proscenium theatre. Photo © Kahle Acoustics

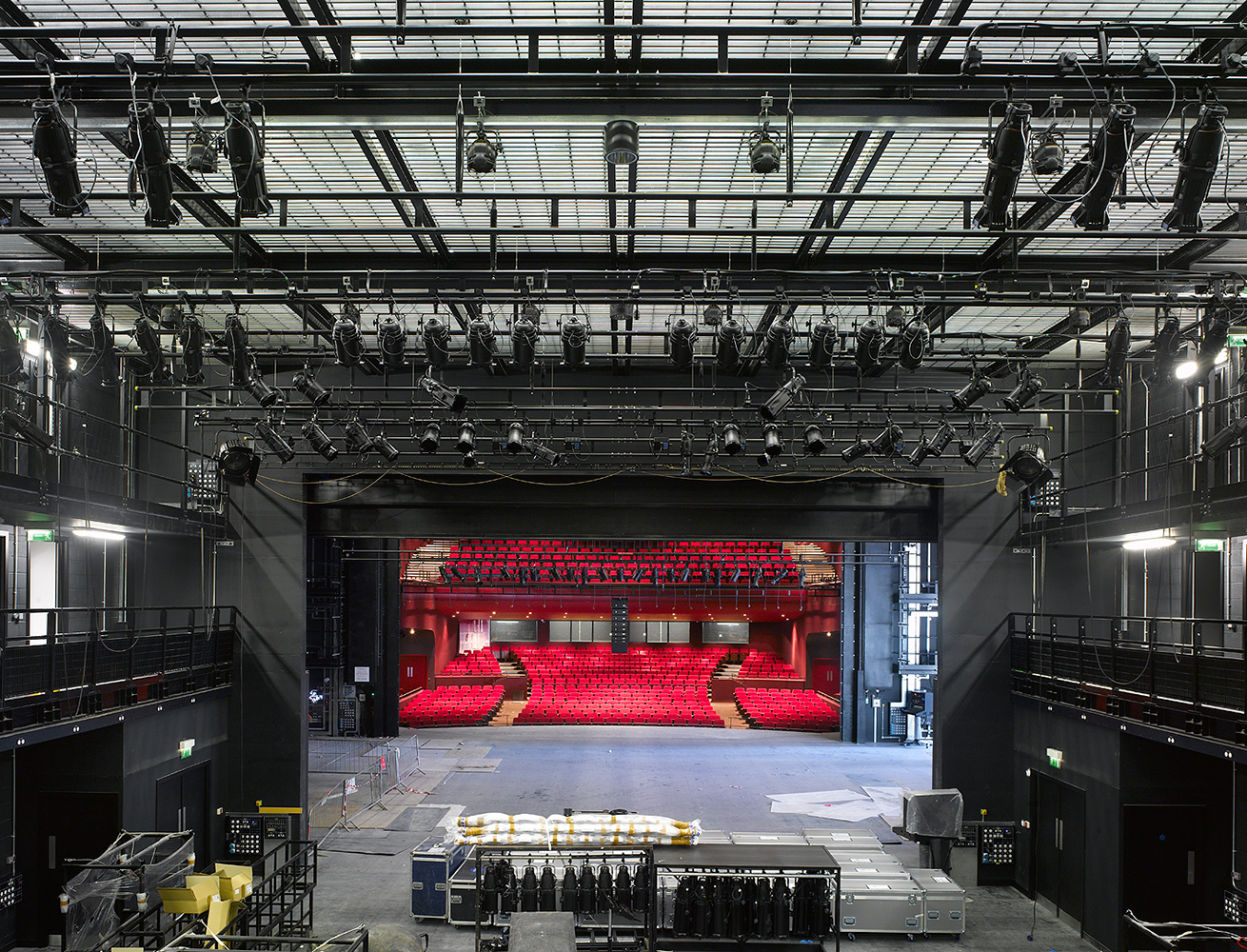

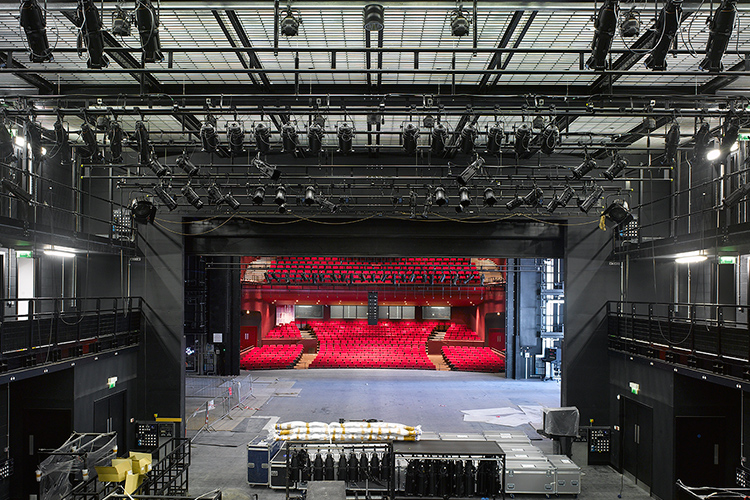

06/13CurveThe 750-seat Proscenium theatre view from the 350-seat “black box” with the central stage. Photo © Will Pryce

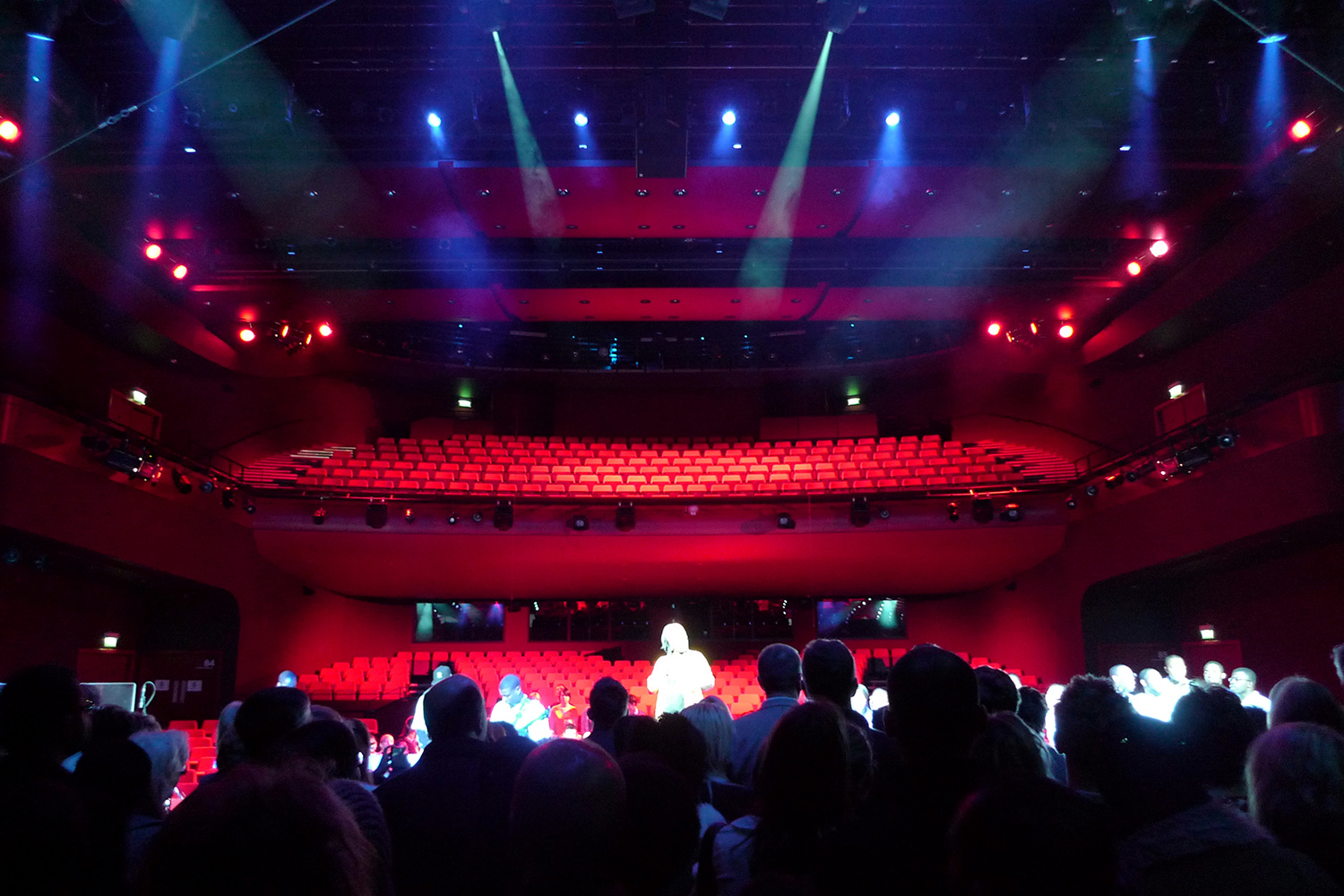

07/13Curve“Lift-off” opening show, with audience passing by on stage. Photo © Kahle Acoustics
08/13CurveVertically moving acoustic wall, opening up to the outside world after the “Lift-off” show. Photo © Kahle Acoustics

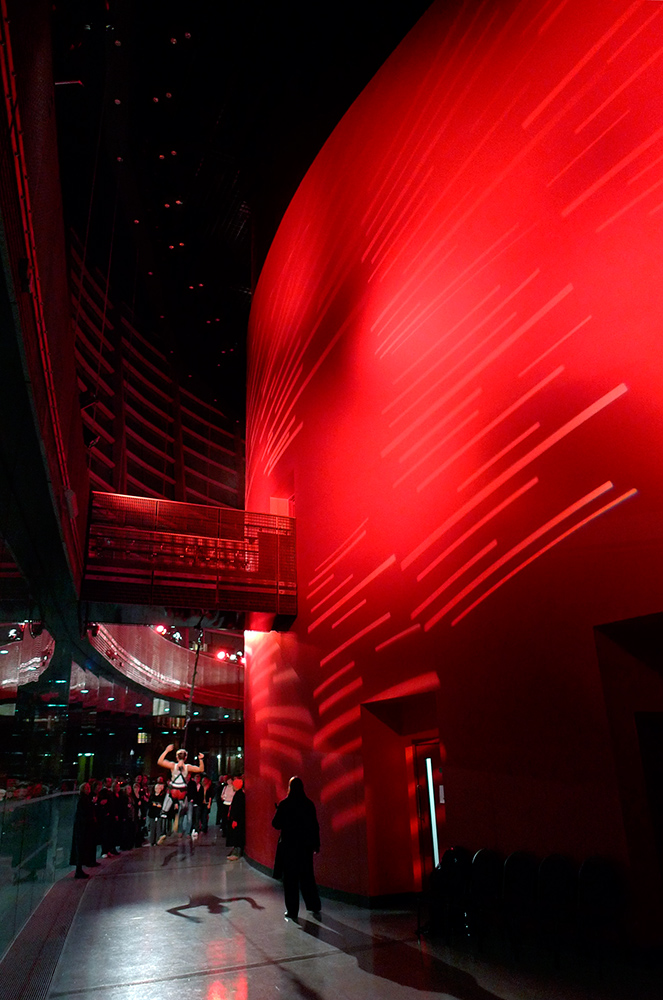

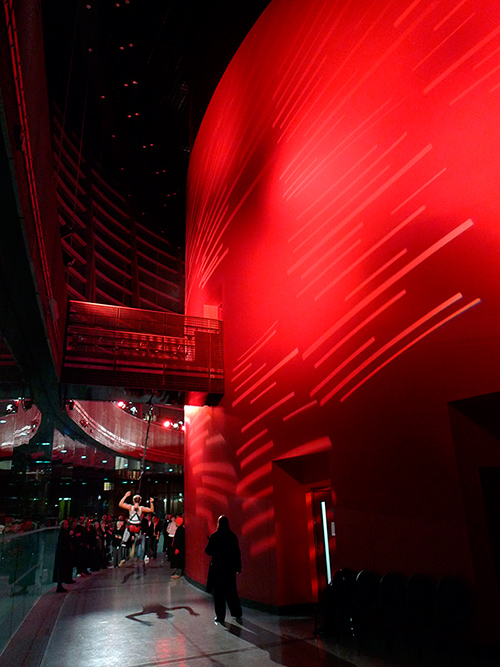

09/13CurveThe foyer being used as a performance space, here for the “Lift-off” show. Photo © Kahle Acoustics

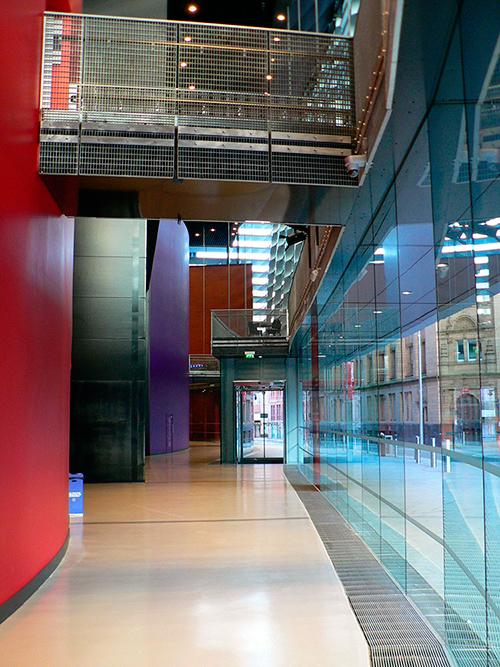

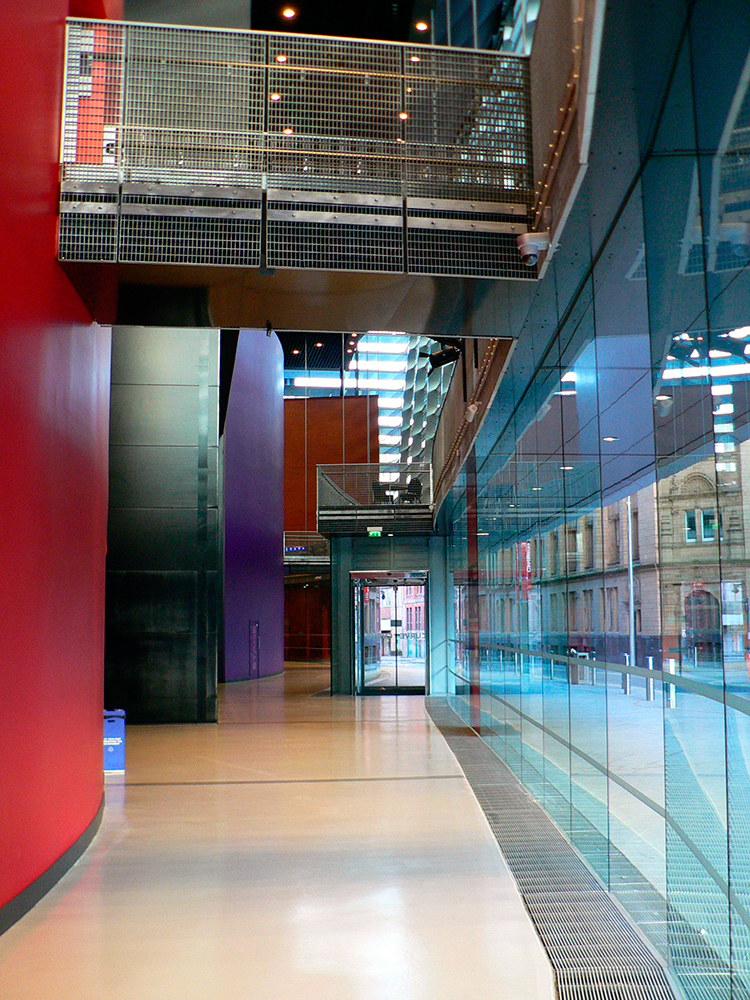

10/13CurveFoyer on the glazed façade side. Photo © Kahle Acoustics

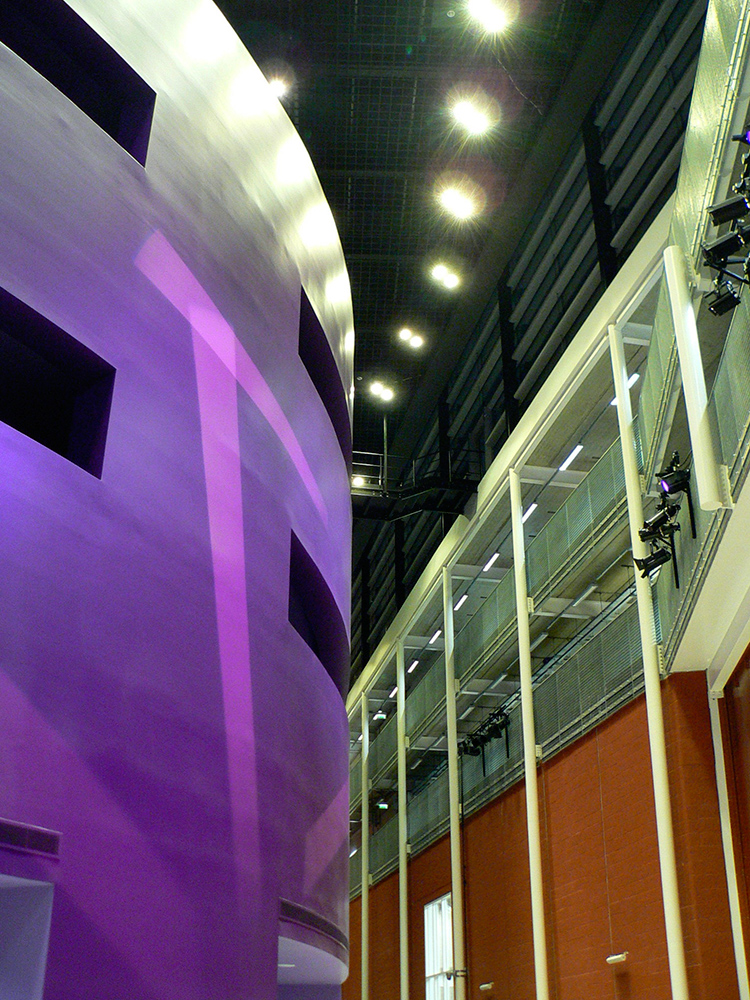

11/13CurveLooking upwards in the foyer, across the 750-theatre pod. Photo © Kahle Acoustics

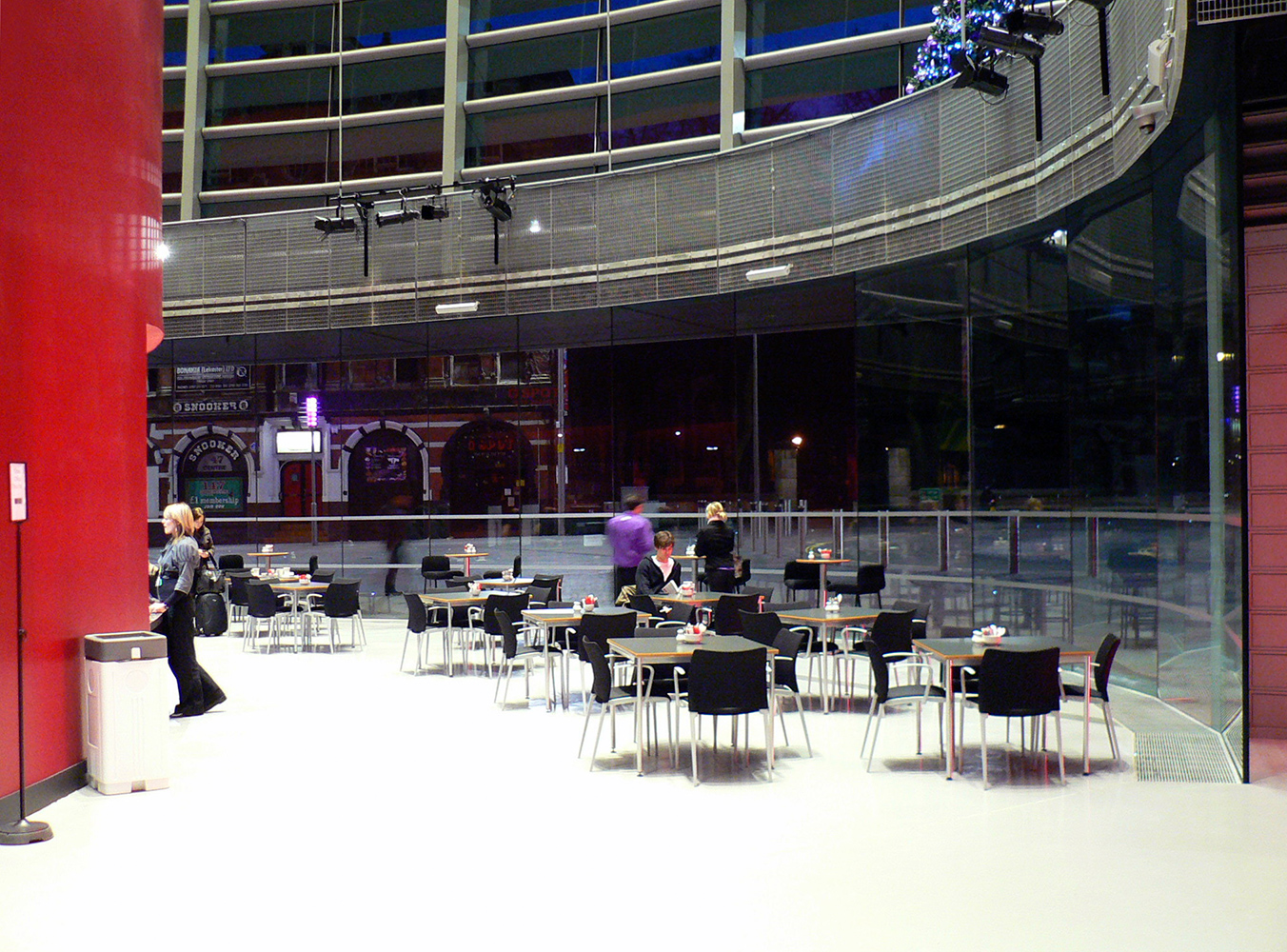

12/13CurveOne of the foyer bars. Photo © Kahle Acoustics

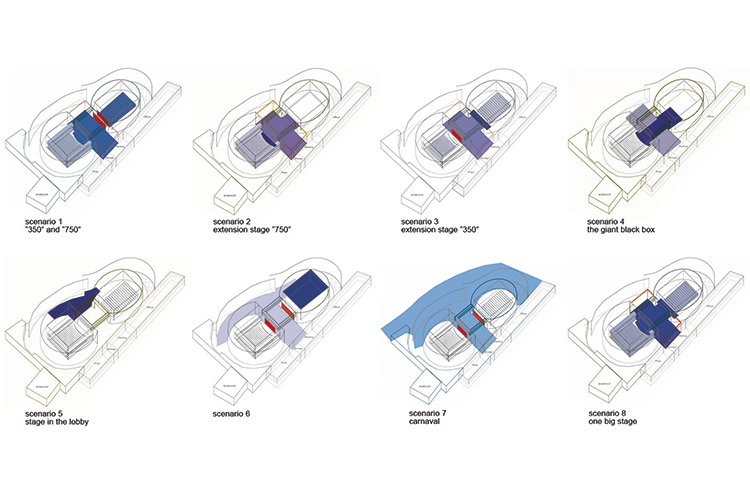

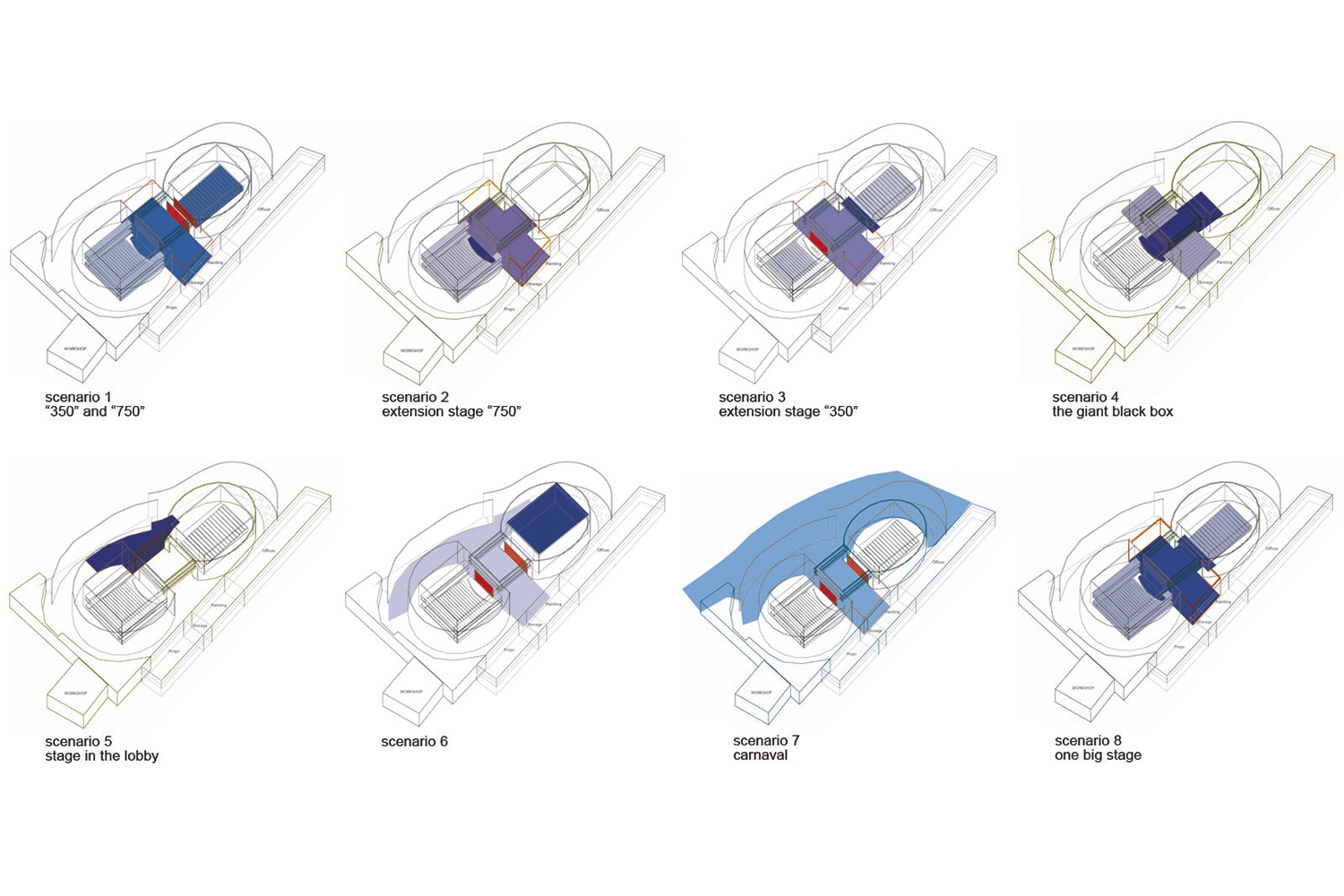

13/13CurveDifferent uses of the performing arts center. Photo © Ducks Scéno
